Track Lights

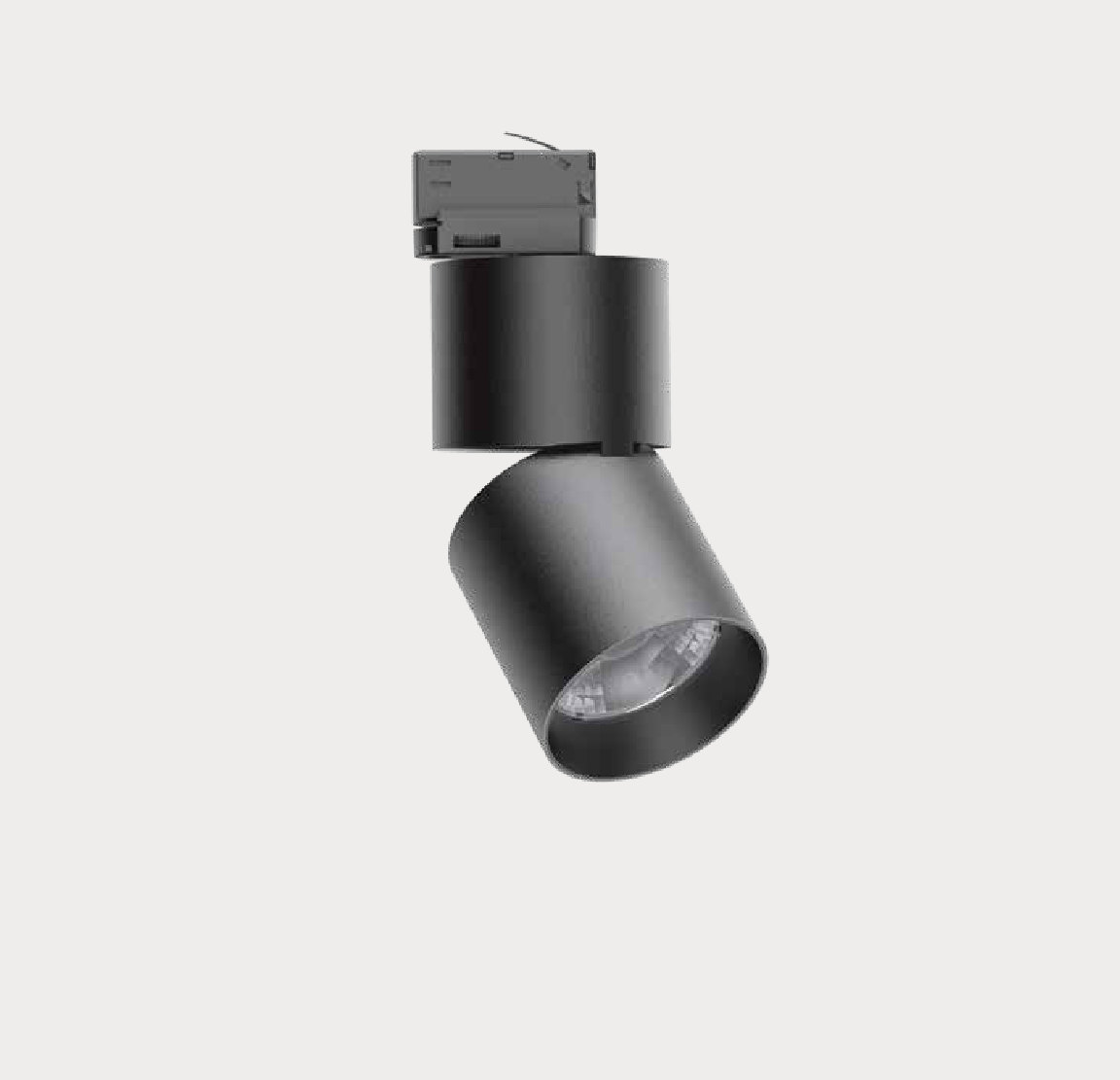

FOCUS-L

Light with intent

Configure in 3D→

Technical track spotlight designed to direct light with accuracy and highlight the essential. Available in sizes L and S.

Applications
Luxury retailHigh-end fashion storesArchitectural commercialShowrooms
Driver options
Non-dimmableDALIMasterConnect
Power
25–35 W
Maximum flux
5,215 lm
Efficacy
up to 170 lm/W
Optics
24° · 40° · 62°
Temperature
2700K · 3000K · 4000K
CRI
>90 / >96
Protection
IP20
Glare
UGR <19
Material
Aluminio
Warranty
5 years
Dimensions
Carril 3L · Ø90 mm
Finishes
White · Black
Technical drawing

Official dimensions

↓ Download PDF

Vector dimensional drawing · dimensions in mm · FOCUS-L

Technical downloads

All the documentation you need to specify and integrate the luminaire into your project.

Download
Dimensional drawing · FOCUS-L
Official dimensions and mounting details
PDF

Files marked “on request” are sent by email within 24-48 h. Write to us and we will provide them for your project.

Photometry for DIALux

The measured curve of this luminaire, in both formats any calculation software reads. Pick the reference and download it.

↓ LDT · FO2527-CRI90-24↓ IES · FO2527-CRI90-24

Luminaire flux: 3685 lm · Source flux: 3875 lm · 25 W

The file carries the flux leaving the optic, which is what your software will use. The commercial datasheet publishes the source flux, before optical efficiency.

References

Technical table

ReferencePowerCCTFlux CRI>90Flux CRI>96Current
FO2527-CRI25W2700K3,875 lm2,400 lm700 mA
FO2530-CRI25W3000K4,125 lm2,540 lm700 mA
FO2540-CRI25W4000K4,250 lm2,700 lm700 mA
FO3527-CRI35W2700K4,700 lm3,135 lm900 mA
FO3530-CRI35W3000K5,015 lm3,267 lm900 mA
FO3540-CRI35W4000K5,215 lm3,465 lm900 mA

Suffixes: -DA (DALI) · -MC (MasterConnect) · |WH white · |BK black · L80B10 >60,000h
