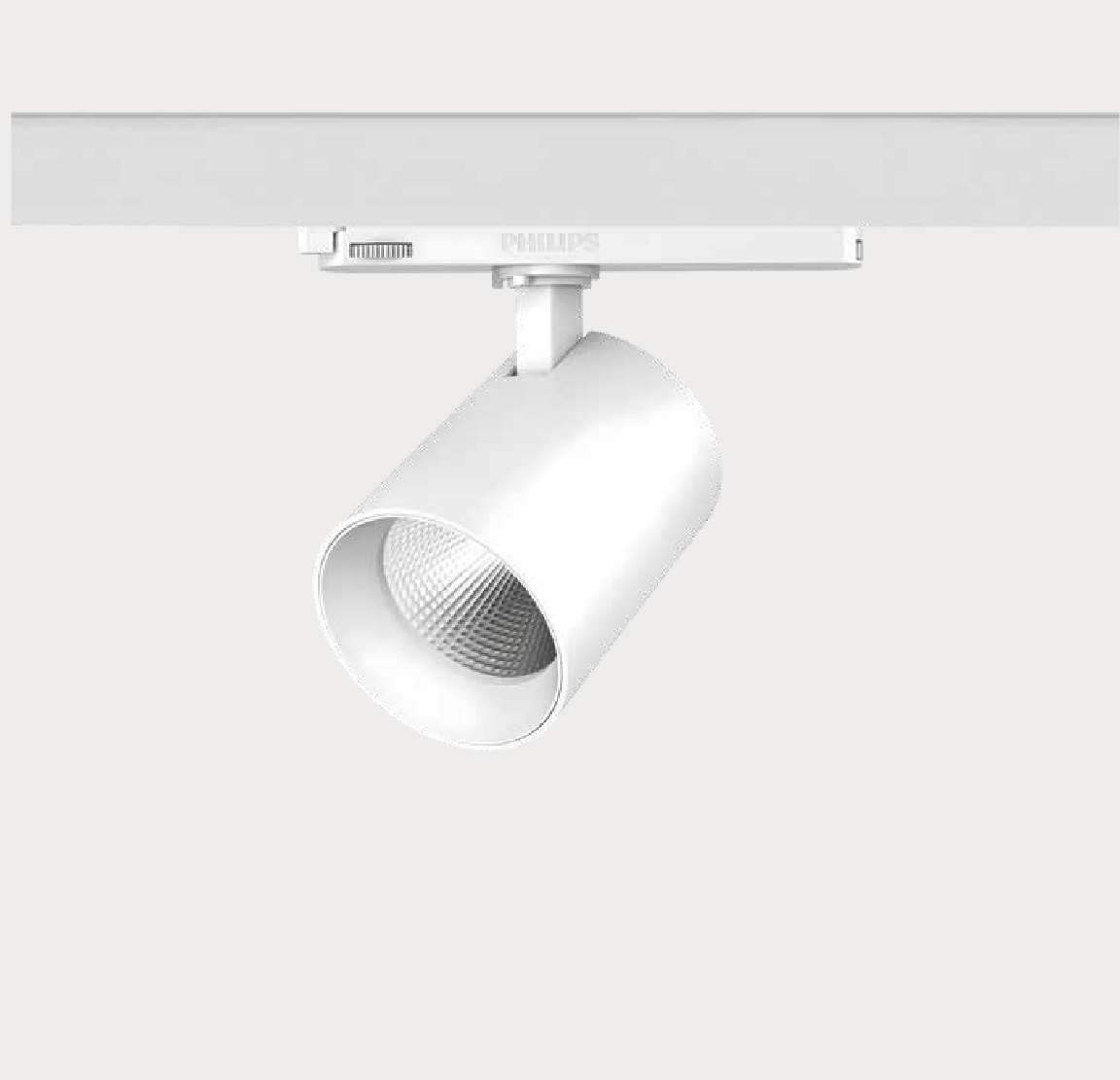

Three-phase track spotlight designed to deliver power, precision and flexibility in commercial and architectural spaces. Available in sizes L and S.
Official dimensions
Vector dimensional drawing · dimensions in mm · VOLTA-S
All the documentation you need to specify and integrate the luminaire into your project.
Files marked “on request” are sent by email within 24-48 h. Write to us and we will provide them for your project.
The measured curve of this luminaire, in both formats any calculation software reads. Pick the reference and download it.
Luminaire flux: 2110 lm · Source flux: 2325 lm · 15 W
The file carries the flux leaving the optic, which is what your software will use. The commercial datasheet publishes the source flux, before optical efficiency.
Technical table
| Reference | Power | CCT | Flux CRI>90 | Flux CRI>96 | Current |
|---|---|---|---|---|---|
| VO1527-CRI | 15W | 2700K | 2,325 lm | 1,470 lm | 450 mA |
| VO1530-CRI | 15W | 3000K | 2,475 lm | 1,575 lm | 450 mA |
| VO1540-CRI | 15W | 4000K | 2,550 lm | 1,650 lm | 450 mA |
| VO2027-CRI | 20W | 2700K | 2,840 lm | 1,970 lm | 600 mA |
| VO2030-CRI | 20W | 3000K | 3,040 lm | 2,100 lm | 600 mA |
| VO2040-CRI | 20W | 4000K | 3,160 lm | 2,240 lm | 600 mA |
Suffixes: -DA (DALI) · -MC (MasterConnect) · |WH white · |BK black · L80B10 >60,000h
