Colour temperature
3000KWarm
High-performance luminaire designed to deliver precise and efficient lighting in visually demanding spaces. UGR <12.
Applications
General retailHigh-end fashion storesArchitectural commercialOpen-plan areas
Driver options
Non-dimmableDALIMasterConnect
Power
25–30 W
Maximum flux
3,900 lm
Efficacy
up to 134 lm/W
Optics
25° · 36° · 45°
Temperature
3000K · 4000K
CRI
>90
Protection
IP20
Glare
UGR <12
Material
Aluminio
Warranty
3 years
Dimensions
Carril 3L · L590 · H105,3 mm
Finishes
White · Black
Technical downloads
All the documentation you need to specify and integrate the luminaire into your project.
Files marked “on request” are sent by email within 24-48 h. Write to us and we will provide them for your project.
Photometry for DIALux
The measured curve of this luminaire, in both formats any calculation software reads. Pick the reference and download it.
Luminaire flux: 3250 lm · Source flux: 3740 lm · 25 W
The file carries the flux leaving the optic, which is what your software will use. The commercial datasheet publishes the source flux, before optical efficiency.
References
Technical table
4 configurations
| Reference | Power | CCT | Flux CRI>90 | Flux CRI>96 | Current |
|---|---|---|---|---|---|
| ZE2530-CRI | 25W | 3000K | 3,250 lm | — | 700 mA |
| ZE2540-CRI | 25W | 4000K | 3,360 lm | — | 700 mA |
| ZE3030-CRI | 30W | 3000K | 3,800 lm | — | 850 mA |
| ZE3040-CRI | 30W | 4000K | 3,900 lm | — | 850 mA |
Suffixes: -DA (DALI) · -MC (MasterConnect) · |WH white · |BK black · L80B10 >60,000h
Datasheet

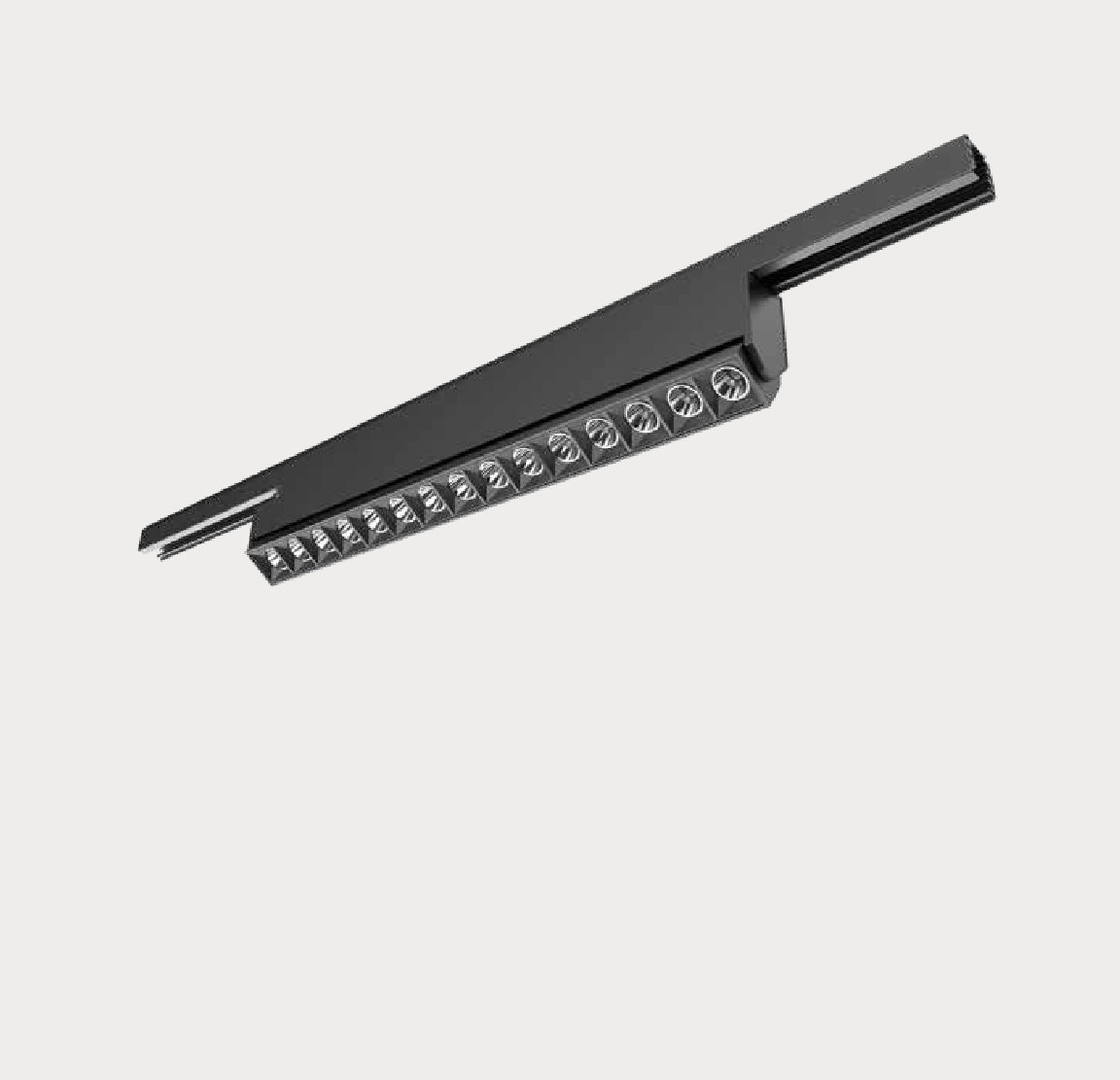

ZENITH
Track Lights
Light at its peak
High-performance luminaire designed to deliver precise and efficient lighting in visually demanding spaces. UGR <12.Technical table
Power
25–30 W
Maximum flux
3,900 lm
Efficacy
up to 134 lm/W
Optics
25° · 36° · 45°
Temperature
3000K · 4000K
CRI
>90
Protection
IP20
Glare
UGR <12
Material
Aluminio
Warranty
3 years
Dimensions
Carril 3L · L590 · H105,3 mm
Finishes
White · Black
References
| Reference | Power | CCT | Flux CRI>90 | Flux CRI>96 | Current |
|---|---|---|---|---|---|
| ZE2530-CRI | 25W | 3000K | 3,250 lm | — | 700 mA |
| ZE2540-CRI | 25W | 4000K | 3,360 lm | — | 700 mA |
| ZE3030-CRI | 30W | 3000K | 3,800 lm | — | 850 mA |
| ZE3040-CRI | 30W | 4000K | 3,900 lm | — | 850 mA |
Suffixes: -DA (DALI) · -MC (MasterConnect) · |WH white · |BK black · L80B10 >60,000h
